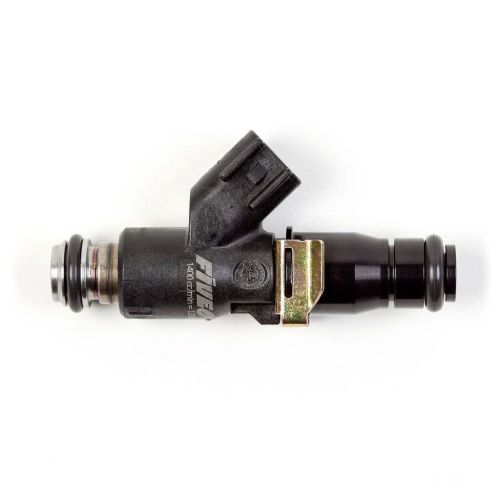

Black-Ops, M-Series X-17 US/Euro, Long Fit

Fiveomotorsport Custom
Part Number: Black-Ops, X-17
Flow Rate: Please select an option below
Resistance: 12.5 Ohms
Connector Type: USCAR (EV6)
High Performance
$65.00 (USD)
Subtotal: $65.00

Fiveomotorsport introduces the "Black-Ops, M-Series" High-Performance, Flow-Matched Fuel Injectors.

LIST PRICE INCLUDES: ONE (1) FUEL INJECTOR WITH ELECTRICAL CONNECTOR (see photos and drop-down menu for options)

  • Available in flow-rates from 270cc to 1600cc/min (25 lbs to 150 lbs/hr) at 3 Bar
  • Order multiple injectors:  Always delivered in flow-matched sets with data sheet
  • Please use drop-down menu to select flow-rate and electrical connector type

After several years of R&D and after testing many different injector core/body configurations, Fiveomotorsport is releasing the new Black-Ops M-Series Fuel Injectors for sale to the automotive industry for street-performance, racing, and all high-performance vehicles.

  • Made in the USA
  • ULTRA FAST RESPONSE TIMES:
    • CONSISTENT EVEN AT VERY LOW PULSE WIDTHS
    • LOW DEAD-TIMES ACROSS THE OPERATING VOLTAGE RANGE
  • ELECTRICAL ADAPTERS INCLUDED (see menu options)
  • COMPATIBLE WITH ALL PERFORMANCE FUELS INCLUDING ETHANOL/METHANOL
  • ALL STAINLESS STEEL INTERNAL PARTS

Built with a robust internal coil design that delivers ultra-fast response time, great idle and lots of high-end power. Extremely reliable up to 95% duty cycle (note: if you are running above 90% duty cycle, it is better to move up to a higher-flowing fuel injector). Higher flow-rates available up to 1600cc/min.

Similar injectors have been used as OE injectors proving their durability and consistency -- partly due to the new larger insulated coil.
Notice the 17 mm body diameter (see photos) - approximately 2 mm larger than a standard Bosch EV14 injector.

Our custom-manufactured Black-Ops injectors bring ultra-fast minimum pulse widths never seen before in modern Bosch EV14/EV6-style high-impedance fuel injectors (Quicker than even the best low-impedance injectors).

Black-Ops Fuel Injector Performance Details:

Fiveomotorsport is able to guarantee flow-matched sets from 2 to 12 injectors dynamically flow-balanced and matched to within 0.5-1.0%.

Narrow cone spray pattern throughout the rpm range. And where it gets really good is at high volume/high rpm and high pressure at boost.
Testing has been completed. Check out the video of the Black-Ops M80 operating at 7,200 rpm and a pulse width of only 2 ms.
Even with the simulated conditions you will still see the super-fine droplets our new single-hole nozzle produces--equaling the high atomization rate of a multi-hole injector.

This injector can provide a smooth idle quality on engines running all types of performance fuel, including E85.

Fuel Injector Specifications:

  • Fuel Delivery:  270cc to 580cc/min use a 4-hole nozzle, and 650cc/min and above use a single-hole ball valve (you can expect maximum fuel atomization with both types.)
  • Coil Resistance: 12.5 OHMS (high-impedance)
  • Flow-Matched sets are delivered in flow rates at or very near the advertised flow rate (you will get a set that is exactly flow-matched to within a best-in-the-business 0.5-1.0% -- guaranteed).
  • Minimum Pulse Width: 1.4 ms
  • With your order you will receive a complete flow-data-sheet showing actual tested flow rates for your individual injectors
  • Data sheet includes static flow data at 3 Bar (43.5 psi), 3.5 Bar (50.8 psi) and 4 Bar (58.0 psi). Black-Ops injectors can operate at 100+ psi.
  • Data sheet includes dynamic flow data at 3 Bar at 6000 rpm and 5.0 ms and idle data at 800 rpm and 1.5 ms
  • Data sheet includes full latency (dead-time) table from 8 volts to 18 volts at 3 Bar

Fuel Injector Dimensions:

Electrical connector type: USCAR
Overall length: 74 mm - 3.0 in
Body Diameter: 17 mm - 0.70 in
O-ring to o-ring, on center: 66 mm - 2.5 in
Upper o-ring diameter: 14 mm - 0.50 in
Lower o-ring diameter: 14 mm - 0.50 in
O-ring/seal material: Viton

More Information
Manufacturer Fiveomotorsport Custom
OEM or Aftermarket High Performance
Connector Type USCAR (EV6)
Flow Rate Please select an option below
Impedance 12.5 Ohms
Part Number Black-Ops, X-17
Year(s) 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
Make AUDI, BMW, BUICK, CADILLAC, CHEVROLET, CHRYSLER, DODGE, FERRARI, FORD, GMC, HUMMER, JAGUAR, JEEP, LAND ROVER, LINCOLN, LOTUS, MASERATI, PONTIAC, PORSCHE, RAM, VOLKSWAGEN, VOLVO
Black-Ops 1000cc Data
(Size: 62.3 KB)
Black-Ops 1600cc Data
(Size: 62.4 KB)
