Fiveo Black-Ops
Part Number: Black-Ops: Dodge 5.9, LS1, GM 5.7L, 350cid V-8
Resistance: 12.5 Ohms
Connector Type: USCAR (EV6)
High Performance
$82.00 (USD)
Subtotal: $82.00
  • FIVEOMOTORSPORT, INC. introduces the BLACK-OPS FUEL INJECTOR - Made in U.S.A.

  • CALIBRATED specifically for LS1-type GM 5.7L, 350cid and Dodge 5.9 V-8 engines.

  • BLACK OPS FUEL INJECTORS HAVE BEEN OPTIMIZED FOR MODERATELY TO HIGHLY MODIFIED US/Euro V8 engines.

  • Use with gasoline, E85 and all other racing- and street-performance fuels

  • Complete tuning spec sheet included with matched sets

  • COMPATIBLE with our new GM Avenger 340lph (00069) pump for engines up to 800 horsepower.
  • LIST PRICE INCLUDES: Single (1) injector with electrical connector adapter (see menu options)
  •  Available in many flow-rate options:  30lbs to 152lbs
  • Delivered in Flow-balanced and Matched sets (when ordering 8 injectors).



Fuel Injector Specifications:

Saturated-type
All stainless steel internal construction
Over-sized electrical coil
Single-hole disc/ball fuel nozzle
Minimum Pulse Width: 1.4 ms, 450cc; 2.0 ms, 1600cc
Dynamic flow tolerance: 1-3 % depending on flow rate
Consistent at very low pulse width - Minimum pulse with 1.4 ms
Min./max pressure: 32/116 psi
g
Coil Resistance: 12.5 Ohms
Voltage: 8-15 volts, Nominal 13.5 volts
Amperage: 1.0 amps

  • With your order you will receive a complete flow-data-sheet showing actual tested flow rates for your individual injectors (see photos)
  • Data sheet includes static flow data at 3 Bar (43.5 psi), 3.5 Bar (50.8 psi) and 4 Bar (58.0 psi). Black-Ops injectors can operate at 100+ psi.
  • Data sheet includes dynamic flow data at 3 Bar at 6000 rpm and 5.0 ms and idle data at 800 rpm and 1.5 ms
  • Data sheet includes full latency (dead-time) table from 8 volts to 18 volts at 3 Bar

Injector Dimensions:

Electrical connector type: US-CAR
Overall length: 74 mm - 3.0 in
Body Diameter: 17 mm - 0.70 in

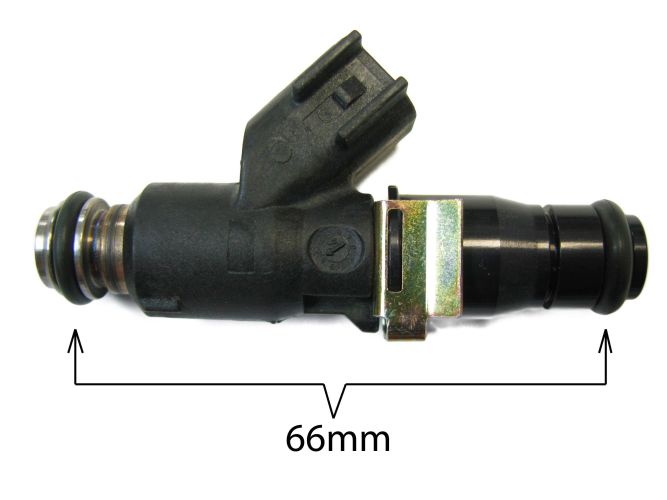

O-ring to o-ring, on center: 66 mm - 2.5 in
Upper o-ring diameter: 14 mm - 0.50 in
Lower o-ring diameter: 14 mm - 0.50 in
O-ring/seal material: Viton

More Information
Manufacturer Fiveo Black-Ops
OEM or Aftermarket High Performance
Connector Type USCAR (EV6)
Impedance 12.5 Ohms
Part Number Black-Ops: Dodge 5.9, LS1, GM 5.7L, 350cid V-8
Make CADILLAC, CHEVROLET, DODGE, PONTIAC
Model CAMARO, CORVETTE, DAKOTA, DURANGO, FIREBIRD, FLEETWOOD, RAM 1500, RAM 1500 PICKUP, RAM 2500, RAM 2500 PICKUP, RAM 2500 VAN, RAM 3500, RAM 3500 PICKUP, RAM 3500 VAN
Engine BROUGHAM, V8, 5.7L, P, GAS, QUAD CAB, V8, 5.9L, Z, GAS, SS, V8, 5.7L, G, GAS, TRANS AM GT, V8, 5.7L, P, GAS, TRANS AM, V8, 5.7L, G, GAS, TRANS AM, V8, 5.7L, P, GAS, V8, 5.7L, 5, GAS, V8, 5.7L, G, GAS, V8, 5.7L, P, GAS, V8, 5.9L, 5, GAS, V8, 5.9L, Z, GAS, Z06, V8, 5.7L, S, GAS, Z28, V8, 5.7L, G, GAS, Z28, V8, 5.7L, P, GAS
