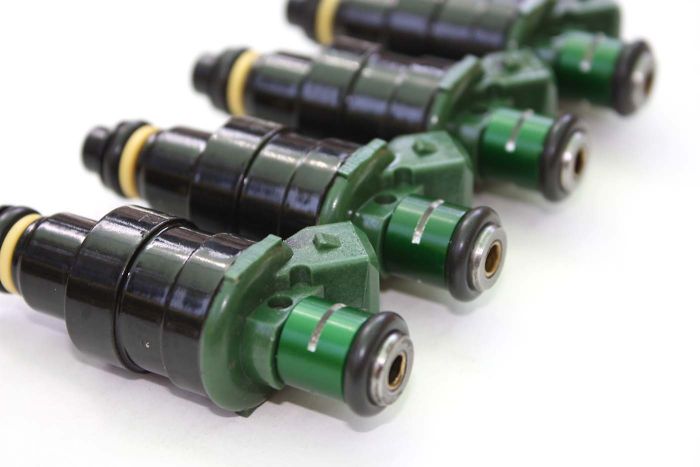

1200cc/min, EV1, 2.5 Ohms, Fiveo Asphalt Series
Custom Fiveo
Part Number:
A1200 Asphalt
Flow Rate:
Please select an option below
Resistance:
2.5 Ohms
Connector Type:
Jetronic (EV1)
High Performance
$135.00 (USD)
High-performance, low impedance - 1200cc/min fuel injector
-
These injectors are part of the new "ASPHALT" series of flow-matched, peak and hold
-
Price listed is for a single (1) fuel injector
-
New Viton O-rings are supplied for installation
-
Custom manufactured, American-made fuel injectors
-
Rated FLEX for all-fuels ; including gasoline (MTBE), E-85, all oxygenated fuels
-
Complete tuning table included with matched sets
FIVEOMOTORSPORT FUEL INJECTORS are custom-manufactured in small-quantity batches to achieve the highest quality product.
Our injectors are all-fuels rated; including gasoline (MTBE), and E-85.
The finished injectors are then flowed and inscribed with a control number.
Data is recorded for each injector. The fuel injectors are then grouped into matched sets ready for shipping.
FLOW CHART: sold with a complete and unique flow-data chart indicating individual static flow rates at 3.0, 3.5, and 4.0 BAR.
As well as 3.0 BAR dynamic pulse testing for idle (15% duty-cycle) and 50% duty-cycle.
Along with a complete dead time off-set (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results.
Linear tuning with excellent low-end, and idle rpm.
Fiveo is the only fuel injector seller that can claim this level of technology.
SPECIAL NOTE TO OUR E85 USERS:
Ethanol based fuels tend to "dry" the fuel injector outlet orifices.
Users/tuners should be made aware that this may cause a "sticking" problem in fuel injectors that sit idle for a prolonged period of time.
It is suggested for applications running high ethanol content based fuels, to periodically incorporate into their fuel-system-maintenance a drop of light petroleum-based lubricant for each fuel injector.
This is also considered to be good maintenance, but not essential, for stainless steel based (Black-Ops Series) fuel injectors.
It should also be noted that for optimum performance the entire fuel system should be made up of ethanol approved materials including all fuel lines/fuel pump/fuel filter, etc.
Injector Body Design: Steel and composite plastic
Flow rates:
We use the industry standard Heptane as our testing agent.
1200 cc/min at 43.5 psi (3.0 bar)
1290 cc/min at 50.8 psi (3.5 bar)
1380 cc/min at 58.0 psi (4.0 bar)
This injector will function at rail pressures in excess of 101 PSI, 7 bar.
Excellent low pulse width response with predictable response down to 2ms.
Excellent atomization for modern multi-valve engines
This set will require no more than a 1% trim for easy tuning
Injector type: EV1
Application: Super-street and racing, naturally- and forced-aspirated engines
Fuel Delivery: Fiveo Proprietary Single Pintle
Electrical Connector: EV1, minitimer
Spray type: wide cone, maximum atomization
Length: 3 inches, 74 mm
Body Diameter: 16 mm
Orings: Top and bottom, 14.5 mm diameter
Resistance: 2.5-Ohms
3 BAR Latency: 14 volts, .0555 ms
Fuel types: Gasoline, Methanol, E85, E25, E10
We are fuel injector experts - email with your questions
All injector sets are sold with our 36 Months/Unlimited Miles Warranty
Manufacturer | Custom Fiveo |
---|---|
OEM or Aftermarket | High Performance |
Connector Type | Jetronic (EV1) |
Flow Rate | Please select an option below |
Impedance | 2.5 Ohms |
Part Number | A1200 Asphalt |
