850cc/83lb, EV14 Standard - U.S. CAR and European CAR, Fuel Injectors

Custom Fiveo
Part Number: 055U850
Resistance: 12.5 Ohms
Connector Type: USCAR (EV6)
High Performance
$110.00 (USD)
Subtotal: $110.00

USE THIS INJECTOR FOR A HIGHLY MODIFIED ENGINE ONLY.

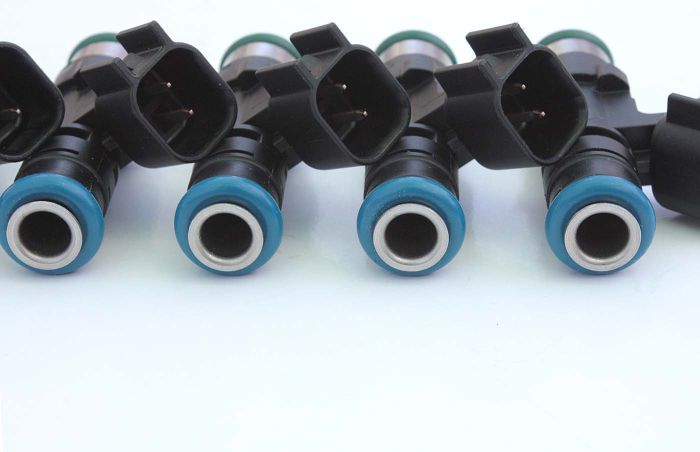

New flow-balanced matched, 83 lbs/hr EV14 with internal filters, high flowing fuel injectors. (Complete flow information below).

FLOW CHART: Delivered with a complete flow-data chart indicating individually tested dynamic and static flow rates at 3.0, 3.5, and 4.0 BAR at 15%, 50% and 100% duty-cycle for each injector, along with a complete dead time (latency) table.
Flow testing and matching was done with industry-standard equipment of the highest quality. The testing was performed at varying temperatures to achieve realistic results.

Use for super street or racing, single or multi-valve, normally aspirated or forced-air induction engine applications:

Use in a super- or turbo-charged engine.

This is a high performance, high volume fuel injector. The fuel delivery is from a single-hole rotating ball/disc fuel nozzle. Wide cone-shape spray pattern for maximum fuel atomization.

Body Design: Composite plastic

Injector type: EV14 with internal filters, saturated

Flow rates:
83 lbs/hr at 43.5 psi. - 850-860 cc/min at 3.0 BAR
88.5 lbs/hr at 50.8 psi. - 925-935 cc/min at 3.5 BAR
96 lbs/hr at 58 psi. -1000-1015 cc/min at 4.0 BAR

Overall length: 2.3/8 inches, 64 mm

Body Diameter: 9/16 inches, 14 mm

Orings: Top and bottom, 14.5 mm

Resistance: 12.8 - 15.5 Ohms

Electrical connector type: U.S. CAR

More Information
Manufacturer Custom Fiveo
OEM or Aftermarket High Performance
Connector Type USCAR (EV6)
Impedance 12.5 Ohms
Part Number 055U850
