750cc, 72lbs New Generation US/Euro Fit

FiveoMotorsport / Bosch
Part Number: 013U750, 72lbs/hr
Resistance: 14.5 Ohms
Connector Type: Jetronic (EV1)
High Performance
$100.00 (USD)
Subtotal: $100.00

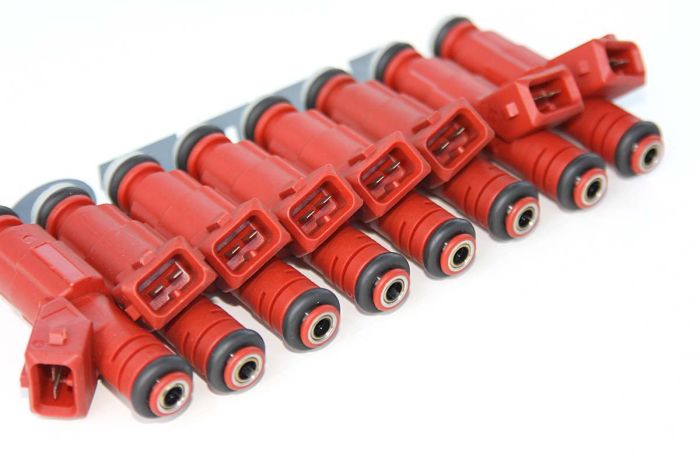

Flow-balanced 750cc, 72lb high-performance fuel injectors

  • Use for super street or racing applications

  • All new o-rings/seals Included for installation

  • List price is for a single (1) fuel injector



This injector incorporates a new cone-shape fuel spray from a single-hole disc. It will atomize the fuel efficiently resulting in a more complete combustion of the fuel/air mixture. That means more horsepower.

Fiveomotorsport is a respected name in high performance and racing parts.
Our injectors are custom-milled from brand new American-made fuel injector "cores" in large-quantity batches to achieve the highest quality product.
The resulting sets are all-fuels rated; including gasoline (MTBE), and E-85. The finished injectors are then flowed and inscribed with a control number. Data is recorded for each injector. They are then hermetically-sealed and placed in matched sets ready for shipping.
You don't get this kind of technology from an OE injector.

FLOW CHART:  injectors are delivered with a complete flow-data chart indicating individual dynamic and static flow rates at 3.0, 3.5, and 4.0 BAR at 15%, 50% and 100% for each injector, along with dead time (latency) at 8-18 volts. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results. Linear tuning with excellent low-end, and idle rpm.

Flow Rate: 750 cc/min at 3 BAR - 72lbs/hr at 43.5 PSI
Resistance: 11.8-16.5 Ohms
Voltage: 8-15 Volts, Nominal 13.5 Volts
Amperage: 1.0 Amps
Pressure: Min. 36 PSI (2.5 bar), Max. 101 PSI (7 bar)

More Information
Manufacturer FiveoMotorsport / Bosch
OEM or Aftermarket High Performance
Connector Type Jetronic (EV1)
Impedance 14.5 Ohms
Part Number 013U750, 72lbs/hr
