Arctic Cat, Wildcat, Trail Twin 700, Wildcat 1000
FiveoMotorsport / Bosch
Part Number:
233Z, 233UZ
Resistance:
12.5 OHMS
Connector Type:
USCAR (EV6)
High Performance
$85.00 (USD)
LIST PRICE INCLUDES: One fuel injector
- Use the menu to select Configuration and Flow-rate
- Wired Plug-and-Play adapters sold seperately (see menu options)
Two configurations to choose from:
- 233Z - 14.5 mm upper o-ring & 13.5 mm lower seal, with extended nozzle

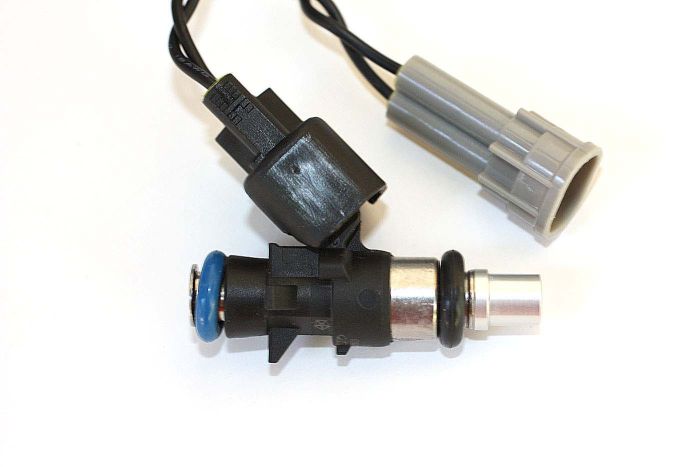

- 233UZ - 14.5 mm upper o-ring & 14.5 mm lower o-ring with extended nozzle
Fits: Arctic Cat, Wildcat Trail Twin 700, Wildcat 1000
- Resistance: 12.5 OHMS
- Voltage: 8-16 Volts, Nominal 13.5 Volts
- Pressure: Min. 36 PSI (2.5 bar), Max. 145 PSI (10 BAR)
- Construction: Black composite plastic external/stainless steel internal
- All Viton o-rings/seals included for installation
These injectors are all-fuels rated; including gasoline (MTBE), E85, race gas; Q16, C16, etc.
FIVEOMOTORSPORT FUEL INJECTORS are custom-manufactured in small-quantity batches to achieve the highest quality product.
Injectors are flow-balanced and matched
Flow test data is recorded for each injector (data sheet included)
FLOW CHART: Injectors are delivered with a complete and unique flow-data chart indicating individually tested static flow rates at 3.0, 3.5, and 4.0 BAR.
As well as 3.0 BAR dynamic pulse testing for idle (15% duty-cycle) and 50% duty-cycle.
Along with a complete dead time off-set (latency) table. Flow testing and matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results.
Linear tuning with excellent low-end, and idle rpm.
Fiveo is the only fuel injector seller that can claim this level of technology.
Manufacturer | FiveoMotorsport / Bosch |
---|---|
OEM or Aftermarket | High Performance |
Connector Type | USCAR (EV6) |
Impedance | 12.5 OHMS |
Part Number | 233Z, 233UZ |
