550cc Toyota, Scion tC Fuel Injector, 2011-2015
Denso, Toyota Original Equipment
Part Number:
0V010-550cc, 23250-0V010, 12360
Flow Rate:
Please select an option below
Resistance:
13.4 Ohms
Connector Type:
Toyota
High Performance
$95.00 (USD)

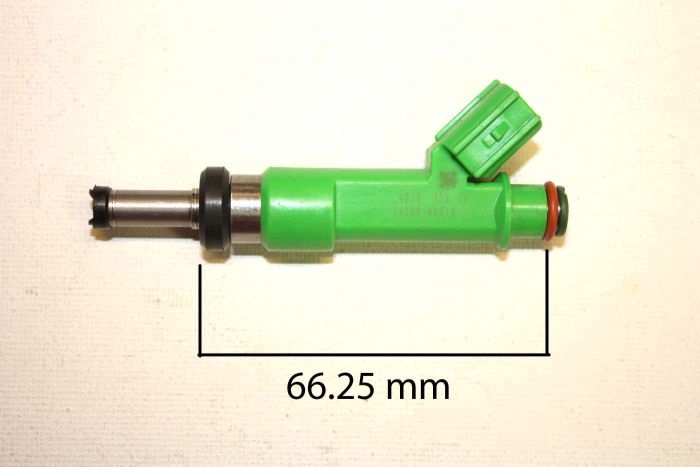

550cc/min Fuel Injectors: Scion tC 2011, 2012, 2013, 2014, 2015
OEM original equipment replacement upgrade
- List price include a single (1) fuel injector
- Order 4 injectors and received a flow-balanced and matched set
- Tuning data included
- All o-rings and lower seals included
Flow Rate: 550 cc/min at 3 BAR
Coil Resistance: 13.4 Ohms
Lime-Green plastic body, extended nozzles
FIVEOMOTORSPORT FUEL INJECTORS are U.S.A. custom-manufactured in small-quantity batches to achieve the highest quality product.
Our injectors are all-fuels rated; including gasoline (MTBE), and E-85.
The finished injectors are then flowed and inscribed with a control number.
Data is recorded for each injector. The fuel injectors are then grouped into matched sets ready for shipping.
FLOW CHART: A complete and unique flow-data chart indicating individual static flow rates at 3.0, 3.5, and 4.0 BAR.
As well as 3.0 BAR dynamic pulse testing for idle (15% duty-cycle) and 50% duty-cycle.
Along with a complete dead time off-set (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results.
Linear tuning with excellent low-end, and idle rpm.
Fiveo is the only fuel injector seller that can claim this level of technology.
Manufacturer | Denso, Toyota Original Equipment |
---|---|
OEM or Aftermarket | High Performance |
Connector Type | Toyota |
Flow Rate | Please select an option below |
Impedance | 13.4 Ohms |
Part Number | 0V010-550cc, 23250-0V010, 12360 |
Year(s) | 2011, 2012, 2013, 2014, 2015 |
Make | SCION, TOYOTA |
Model | TC |
