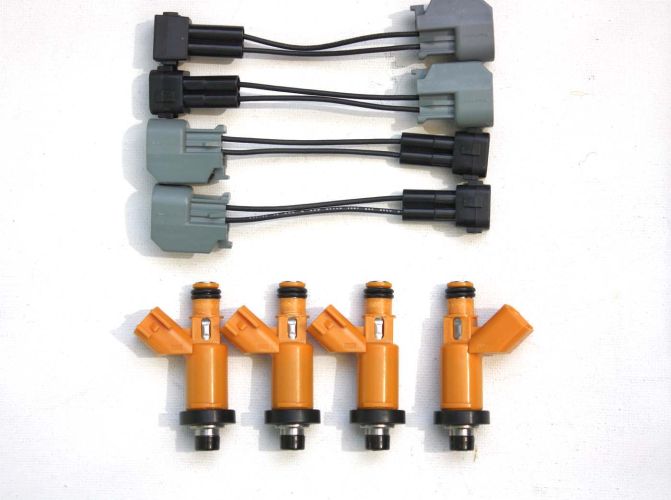

2000cc Hayabusa, GSXR1300 R, Honda S2000 Injector

Fiveo Black Ops SERIES FUEL INJECTORS ARE RATED FOR GASOLINE, OXYGENATED (MTBE, ETHER) RACING FUEL OR ANY OF THE METHYL-ALCOHOL (METHANOL) COMPOUNDS.

• Custom fitted for Honda F, Suzuki Hayabusa or equivalent 4 cylinder engines

READ THIS - LIST PRICE INCLUDES: ONE (1) Fuel Injector, and ONE (1) USCAR/Keihin electrical connector adapter.

• Our competitors can't come close to this price for a U.S. manufactured, new-generation 2000cc, high-impedance fuel injector

FLOW CHART: Each set is sold with a complete flow-data chart indicating individual static flow rates at 3.0, 3.5, and 4.0 BAR. As well as 3.0 BAR dynamic pulse testing for idle (15% duty-cycle) and 50% duty-cycle. Along with a complete dead time off-set (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results. Linear tuning with excellent low-end, and idle rpm.

SPECIAL NOTE TO OUR E85 USERS:
Ethanol tends to "dry" the orifices. Customers should be made aware that this can be a problem with some fuel injectors. And may cause a "sticking" problem. It is suggested that a tank of 91-98 octane gasoline be run to every 5 or 6 tanks of Ethanol to re-lube not only the fuel injectors, but the entire fuel component system. This is also considered to be good maintenance, but not essential, for stainless steel based fuel injectors.

Injector Body Design: Stainless-Steel and composite plastic
Flow rate:
(These are true and tested flow rates).
We use the industry standard Heptane as our testing agent.
Notice we give a flow range. Each set has some slight variation -1.5 %.
2000 cc/min at 3 bar
2190 cc/min 3.5 bar
2380 cc/min 4 bar

Easy tuning and low-end rpm and idle.
This fuel injector will function at rail pressures in excess of 145 PSI/10 BAR.
Excellent low pulse width with predictable response down to 1.5 ms.
Excellent atomization for modern single and multi-valve engines.

Injector type: Saturated
Application: Super-street and racing, naturally- and forced-aspirated engines.
Fuel Delivery: Single-hole, modified disc with diffuser plate. Maximum atomization.
Electrical Connector: EV6, (USCAR)
Spray type: Wide cone, maximum atomization
Length: 3 inches, 74 mm - with extenders
Diameter: 19 mm
Top O-ring: 12 mm
Bottom seal: 21 mm
Resistance: 12.5 Ohms
Fuel types: All types of gasoline, methanol, E85, E25, E10

All our Black Ops Series injectors are guaranteed flow matched.
We adhere to the latest technology and craftsmanship techniques.
