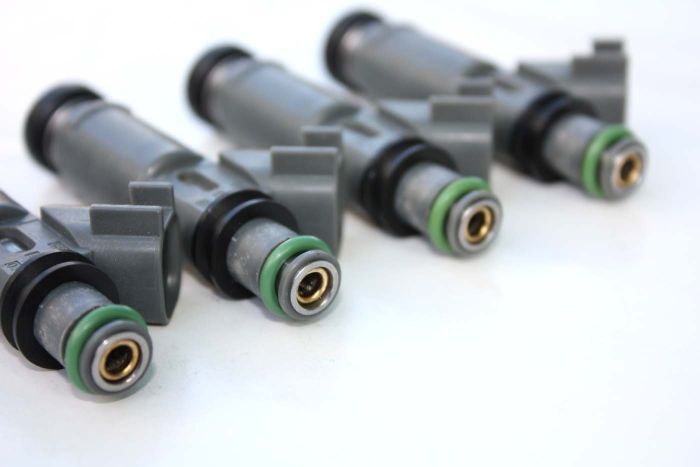

1400 cc/min, Denso/Fiveo Custom, US and Asian Import FIT

Denso/Custom Fiveo
Part Number: 4670U1400 LONG
Resistance: 12.5 Ohms
$125.00 (USD)
Subtotal: $125.00
  • LIST  PRICE INCLUDES: ONE (1) FUEL INJECTOR

FIVEOMOTORSPORT FUEL INJECTORS are custom-manufactured in small-quantity batches to achieve the highest quality product.
Our injectors are all-fuels rated; including gasoline (MTBE), and E-85.
The finished injectors are then flowed and inscribed with a control number.
Data is recorded for each injector. The fuel injectors are then grouped into matched sets ready for shipping.

FLOW CHART: Each set is sold with a complete and unique flow-data chart indicating individual static flow rates at 3.0, 3.5, and 4.0 BAR.
As well as 3.0 BAR dynamic pulse testing for idle (15% duty-cycle) and 50% duty-cycle.
Along with a complete dead time off-set (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results.
Linear tuning with excellent low-end, and idle rpm.
Fiveo is the only fuel injector seller that can claim this level of technology.

SPECIAL NOTE TO OUR E85 USERS:
Ethanol based fuels tend to "dry" the fuel injector outlet orifices.
Users/tuners should be made aware that this may cause a "sticking" problem in fuel injectors that sit idle for a prolonged period of time.
It is suggested for applications running high ethanol content based fuels, to periodically incorporate into their fuel-system-maintenance a drop of light petroleum-based lubricant for each fuel injector.
This is also considered to be good maintenance, but not essential, for stainless steel based (Black-Ops Series) fuel injectors.
It should also be noted that for optimum performance the entire fuel system should be made up of ethanol approved materials including all fuel lines/fuel pump/fuel filter, etc.

Fuel Nozzle: Single-hole  modified-disc, maximum atomization

Electrical connector type: U.S. CAR

Length: 3 inches, 74 mm

Diameter: 19 mm

Coil resistance: 12.5 Ohms

More Information
Manufacturer Denso/Custom Fiveo
Impedance 12.5 Ohms
Part Number 4670U1400 LONG
