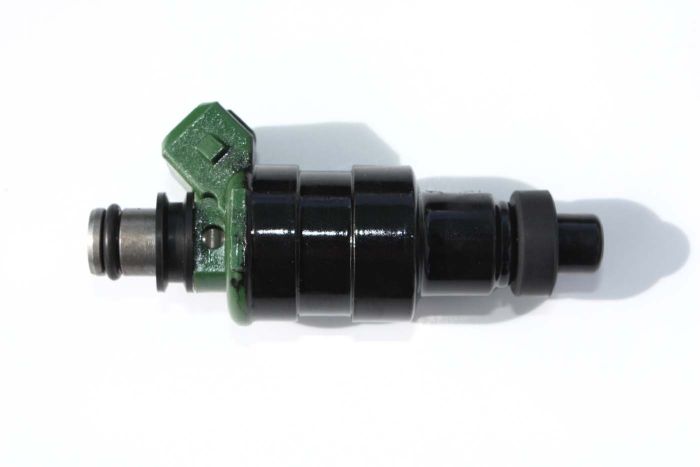

1000cc "Asphalt", 2.5 Ohms, Asian Import-Fit
High performance 1000 cc/min, low-resistance 2.5 Ohms fuel injectors
- Listed price includes 1 fuel injector and 1 electrical connector pigtail
- Multiple injectors ordered are delivered in flow-matched sets
Use for import applications with 11mm fuel rail/16mm intake
FLOW CHART: Matched sets are delivered with complete flow-data chart indicating individually tested dynamic and static flow rates at 3.0, 3.5, and 4.0 BAR at 15%, 50% and 100% duty-cycle for each injector, along with dead time (latency) form 8-18 volts. Flow matching was done with industry-standard equipment of the highest quality. Testing was performed at varying temperatures to achieve realistic results.
Fitment: Modified import applications
Asphalt Series
Nominal Flow Rate: 1000cc/min at 43.5 PSI
Resistance: 2.5 Ohms (low-impedance)
Voltage: 8-18 Volts, Nominal 13.5 Volts
Amperage: 1.0 Amps
High duty cycle with a recovery time of only 1.5 ms
Excellent fuel atomization for medium compression, single and multi-valve engines.
Will not require more than 1% trim
Pressure: Min. 36 PSI (2.5 bar), Max. 101 PSI (7 bar)
Surface finish: green top, bodies are painted black to prevent oxidation.
Easy tuning and accurate compensations.
All O-rings Included for installation
EV1 electrical connector pigtails included
| Manufacturer | Fiveomotorsport |
|---|---|
| OEM or Aftermarket | High Performance |
| Connector Type | Jetronic (EV1) |
| Impedance | 2.5 Ohms |
| Part Number | 10399M1000 / Pigtail |
| Make | MAZDA, MITSUBISHI, TOYOTA |
| Model | ECLIPSE, LANCER, RX-7, SUPRA |
| Engine | EVOLUTION GSR, L4, 2.0L, 4B11, V, Turbo, GAS, EVOLUTION MR, L4, 2.0L, 4B11, V, Turbo, GAS, EVOLUTION MR, L4, 2.0L, 4G63, C, Turbo, GAS, EVOLUTION MR, L4, 2.0L, 4G63, D, Turbo, GAS, EVOLUTION RS, L4, 2.0L, 4G63, C, Turbo, GAS, EVOLUTION RS, L4, 2.0L, 4G63, D, Turbo, GAS, EVOLUTION SE, L4, 2.0L, 4G63, C, Turbo, GAS, EVOLUTION, L4, 2.0L, 4G63, C, Turbo, GAS, EVOLUTION, L4, 2.0L, 4G63, D, Turbo, GAS, EVOLUTION, L4, 2.0L, Turbo, GAS, GXL, R2, 1.3L, GAS, L4, 2.0L, 4G63T, Turbo, GAS, L6, 3.0L, 7MGE, GAS, L6, 3.0L, 7MGE, M, GAS, L6, 3.0L, 7MGTE, M, Turbo, GAS, R2, 1.3L, GAS, R2, 1.3L, Turbo, GAS, TURBO, R2, 1.3L, Turbo, GAS, U, R2, 1.3L, GAS |
